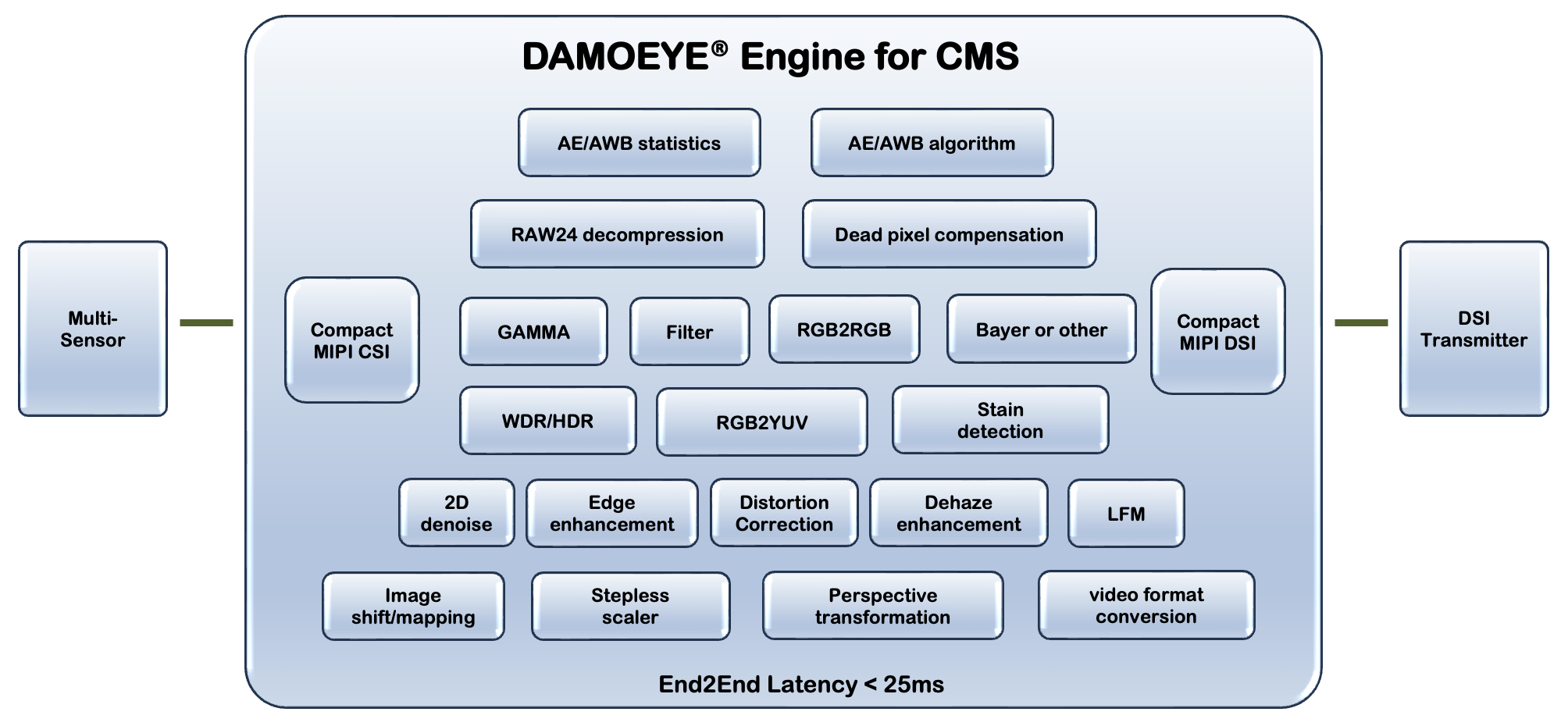

Automotive vision application

The DAMOEYE IP engine enables complete application of CMS in commercial and passenger vehicles:

• G2G latency less than 25ms, maximizing the solution to the low latency application requirements of CMS;
• S​imultaneously targeting in vehicle application scenarios, equipped with stable and accurate AE algorithms and

• A 24-bi​t ISP pipeline provides comprehensive enhancement algorithms such as LFM, enhancement, haze-removal, dark area compensation, and stain detection;

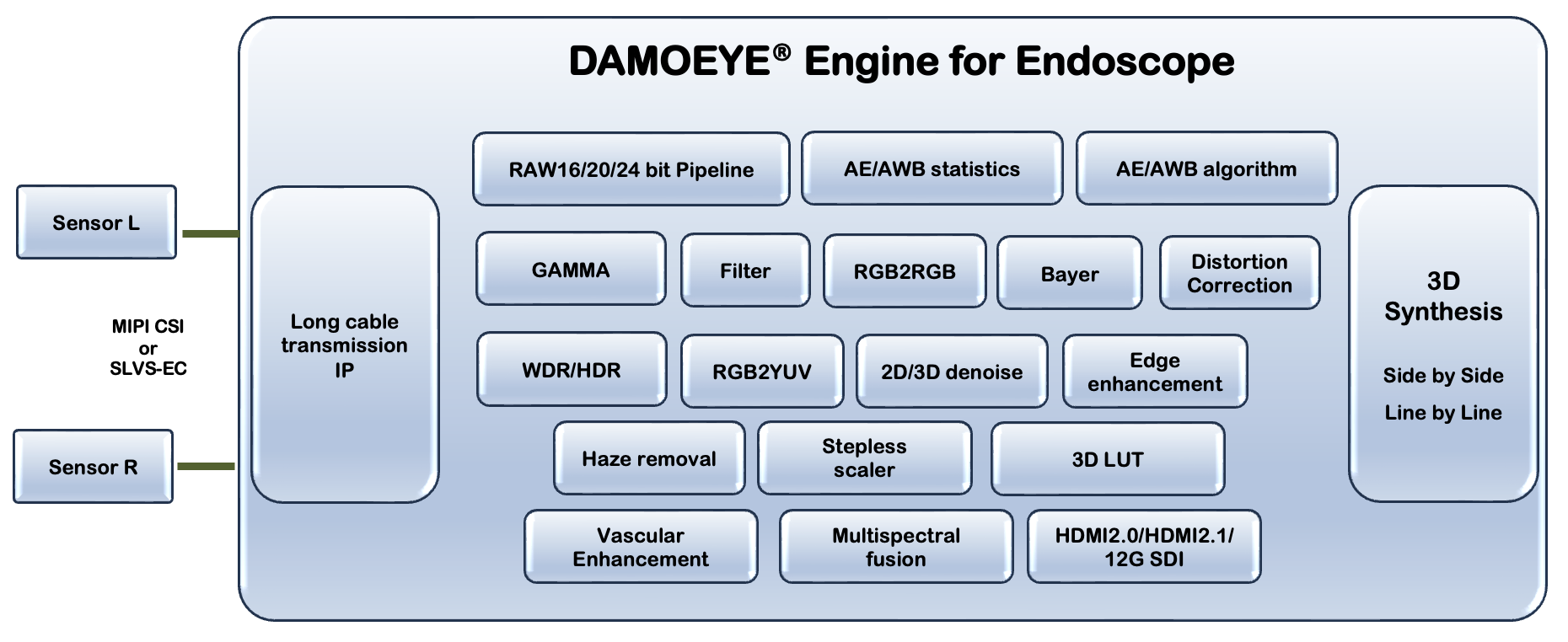

Medical  vision application

For medical endoscopes and surgical robots, the DAMOEYE IP engine achieves low latency (end-to-end less than 40ms) image processing in medical scenes. On the basis of stable adaptive exposure and accurate color restoration, it also provides enhanced functions such as vascular enhancement, Haze removal, and multispectral fusion for the abdominal environment. At the same time, the input interface of sensors (such as MIPI or SLVS-EC) and the output interface of CCU devices (HDMI/SDI) can be customized.

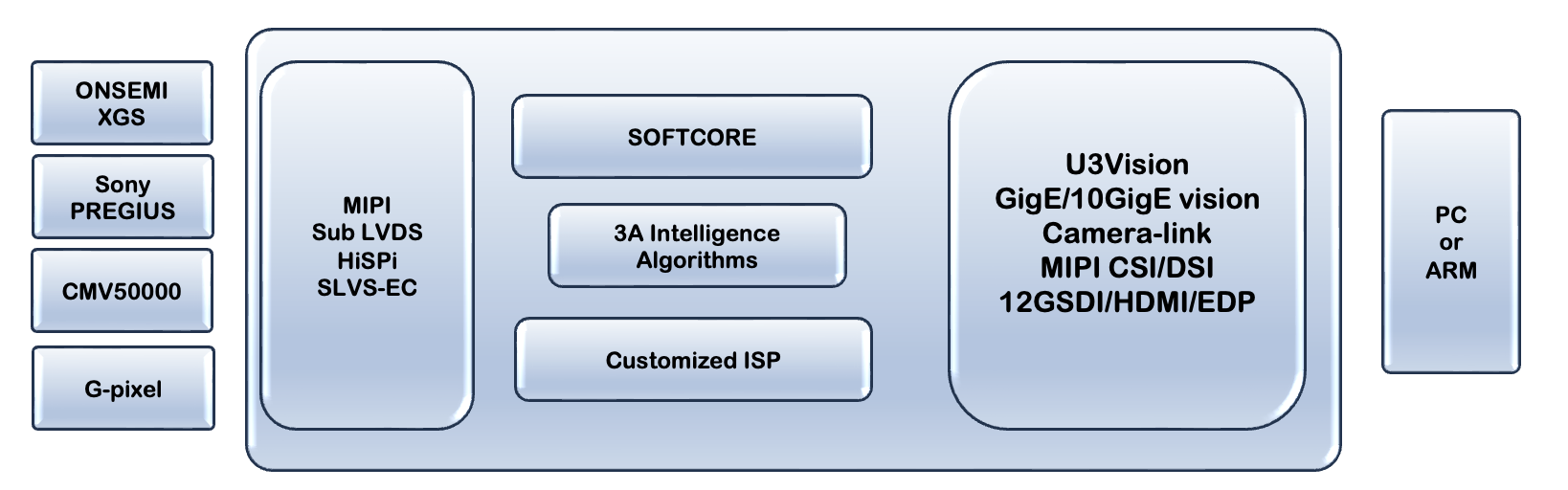

Industrial & Aerospace vision application

For industrial and aerospace vision applications, the complex and varied output interface forms of cameras and diverse sensors are key factors：

• Rich visual interfa​ces U3V&GEV&10GEV&CameraLink , complete SDK
• Rich senso​r interface IP
• Custom​ized ISP processing

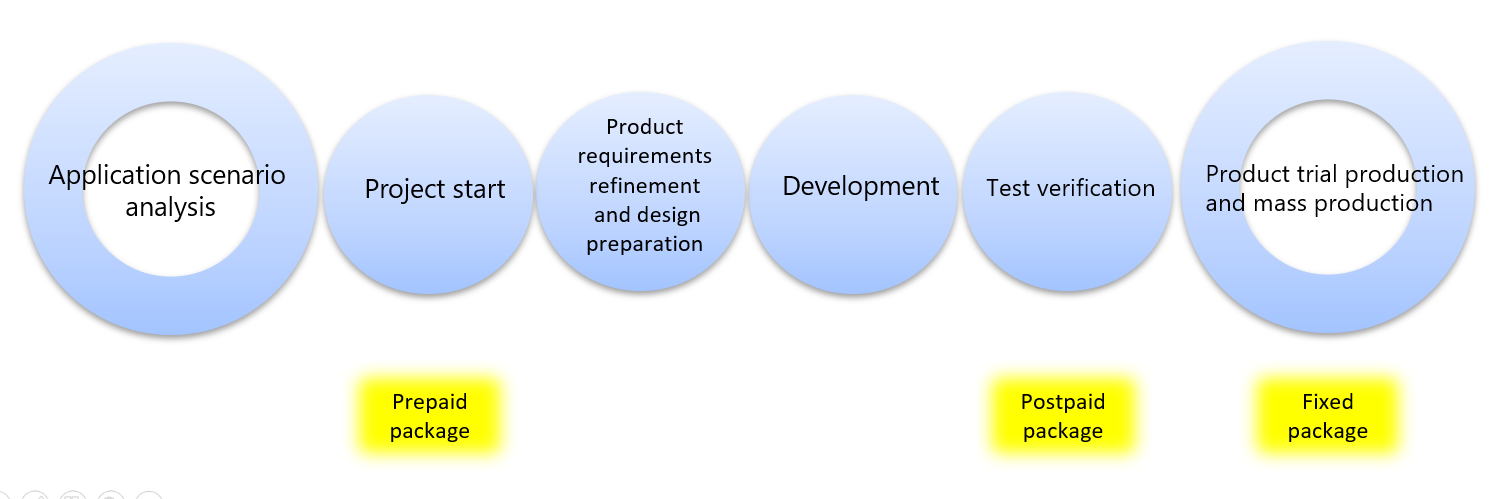

OCAM has an excellent knowledge of CMOS image sensors and extensive camera development & manufacturing experience to support custom development to accelerate the entire design process of customer products. In addition, our engineers will assist customers with their designs during the complex implementation of image processing.
